The Trusted High-End Turnstile Gate&Door Automation Manufacturer With 15 Year Experience!
 |
| Place of Origin: | China |
| Brand Name: | Jiaxuntong |
| Certification: | CE |
| Model Number: | CF1200-HD |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Packaging Details: | wooden case |
| Delivery Time: | 10-15 days after payment |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 800 units per month |
| Name: | CF1200-HD Tripod Gate Turnstile | Function: | Anti Tailgating |
|---|---|---|---|
| Noise: | Less Than 50db | Net Weight: | 85kg |
| Communication: | Rs485 | Opening Angle: | 120º |
| Application: | Factory | Humidity: | Less Than 90% |
| High Light: | tripod barrier gate,tripod security gates |
||

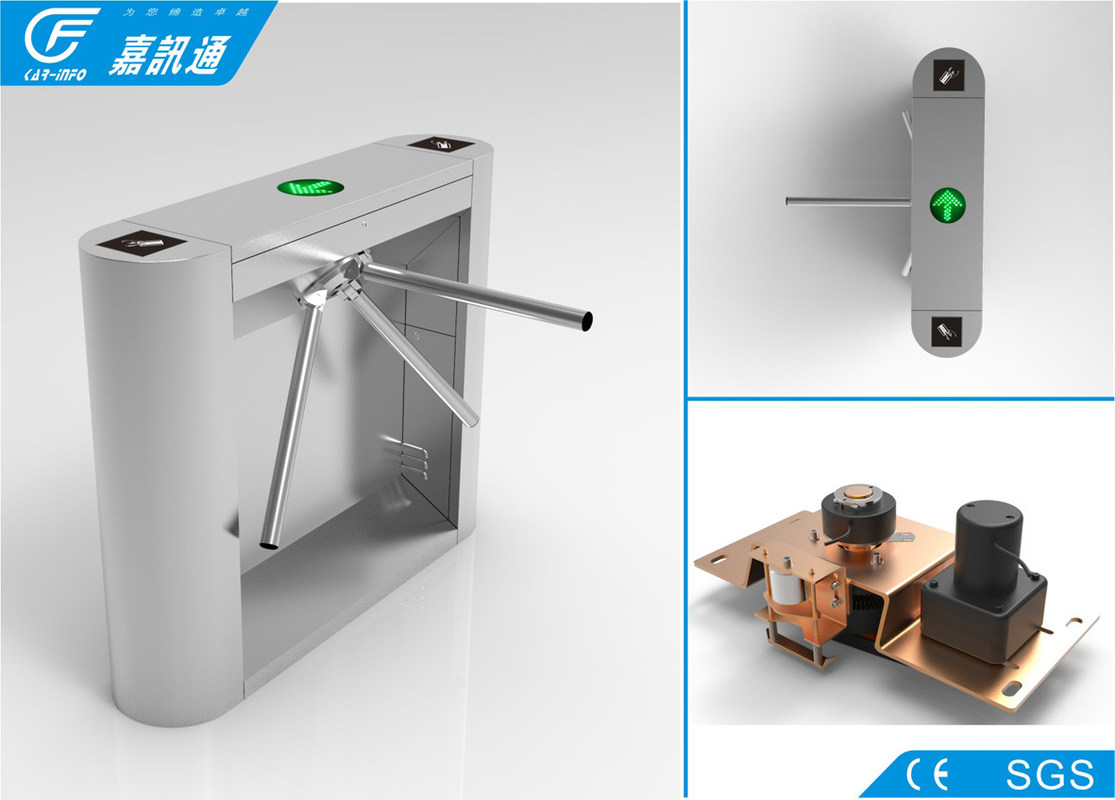

Stainless steel tripod turnstile with access control system , 1 year warranty
Quick Detail:
1. Product name: vertical tripod turnstile
2. Material: stainless steel
3. Size: 1200*280*980mm
4. Service life: 8-10 years
5. Application: resorts entrance
Feature:
1. Stainless steel Housing.
2. Bi-direction pass.
3. Arms auto drop when power off.
4. Arms auto rise up when power on and auto stop on obstacle.
5. Traffic light indicator.
6. If the passenger does not pass in valid time, the passage will be locked up. And the valid passing time can be set up by operator.
7. Passenger counters (optional).
Package Item:
| Item | Name | Qty | Unit | Remark |
| 1 | Housing with rotating plate | 1 | Pc | Necessary |
| 2 | Tripod arm | 3 | Pc | Necessary |
| 3 | Mechanism | 1 | Pc | Necessary |
| 4 | Control board | 1 | Pc | Necessary |
|
5 |
Power supply and cables | 1 | Kit | Necessary |
| 6 | Air switch | 1 | Pc | Necessary |
| 7 | Card reader and its cables | 2 | Kit | Optional |
| 8 | Counter and its cable | 2 | Kit | Optional |
| 9 | Top led light and its cable | 1 | Kit | Optional |
| 10 | Access control system | 1 | Kit | Optional |
| 11 | Mounting bolts | Unspecified | Pc | Necessary |
