The Trusted High-End Turnstile Gate&Door Automation Manufacturer With 15 Year Experience!
|Place of Origin:||China|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||Wooden box 1450x400x1100mm|
|Delivery Time:||Within 7 working days for sample order|
|Payment Terms:||Western Union, T/T|
|Supply Ability:||800 units per month|
|Housing Material:||304 Stainless Steel, Matt Finish||Channel Width:||550-600mm|
|Pass Speed:||25 Persons/min||Input Signal:||Optional DC12V Level Signal Or DC12V Pulse Signal|
|Communication Interface:||RS485 Or TCP/IP||MCBF:||3,000,000 Cycles|

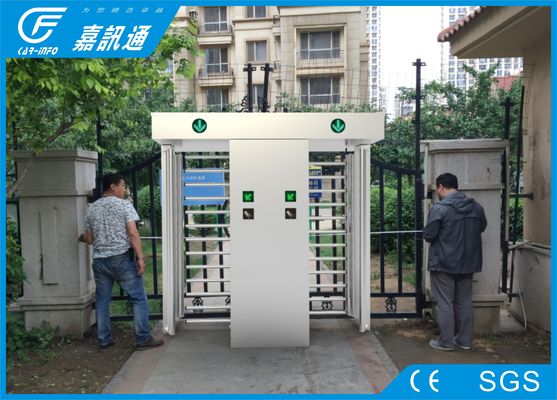

full body turnstile,
one way turnstile
1. Fault detection,user-friendly maintenance and use
2. Bi-direction, or one direction permitted, one forbidden, or one direction need card reader, one for free.
3. Free movement in both directions without power, power lock function automatically restore on power in case of emergency.
4. When a valid card is read, pedestrian just gently push the turnstile.Turnstile can be automatically reset.Two-way channel, three doors are always closed state, the revolving door rotated120 degrees (or 90 degrees each time)
5. Uses a unique rotating system, the gates locked in the zero position, unlock more accurate and reliable.
6. A unified, standard external electrical interface, can be articulated with a variety of equipment to read and write, and easy system integration, and remote control and management by managing computer
7. With automatic reset function.When a valid card is read, the passage of time did not pass, the system will automatically cancel the access by the access permissions.And passage time limit set by the manager.
8. 485 remote control gate opening and closing functions to meet the user's special needs and fire safety requirements.
9. Automatically statistical prevailing number of prevailing direction,and presented to managers by intuitive LED (optional) ,mana
ger can be well aware of the number of passage of a direction.
10. Card reader with memory and without memory function according to user needs, and the user can be set through the control panel.
11. May limit the total number of sites within software set to meet the special needs of special occasions.
12. Smooth operation of the whole system, noiseless.
|Stainless Steel Specification||Body: SS304|
|Brake rod length||600mm|
|Power Supply||AC110V±10V,60Hz / AC220V±10V,50 Hz|
|Drive motor||DC motor 24V|
|Communication interface||RS485 electrical standard or TCP/IP|
|Passing Speed||30 persons/min|
|Communication distance||1200 meters|
|Input Interface||+12V electrical signal or DC impulse signal with width >100ms|
|Communication Interface||RS485/relay signal|
|Operating Temperature||-15°C ~ 50°C|
Paper Carton/Wooden Box
1.Matt finished housing surface, dustproof and rainproof design for outdoor use.
2.Durable DC brushless motor, highly integrated mechanism, 100% heavy duty operation.
3.Drop arm when power off, raise arm automatically when power on.
4.Compatible with other access control system.
5.Convenient installation and maintenance.
1. Can we use our access control system?
Yes, equipped with international interface, can be easily integrated with other recognition devices.
2. If we buy your products, can you train us?
Yes, we can provide training free of charge. You can send your engineers to us, we will train them in our factory.
3. Can you make it bi-directional? Any extra cost?
One direction or bi-direction is available, no extra cost.
4. Can it use for outdoor?
Yes, can be used for outdoor and indoor.
5. What's you warranty?
We provide one year warranty. After that, we can supply chargeable spare parts.
2. Gross Weight: 305KG
3. Package: Export packing, plywood box
Contact Person: echo
