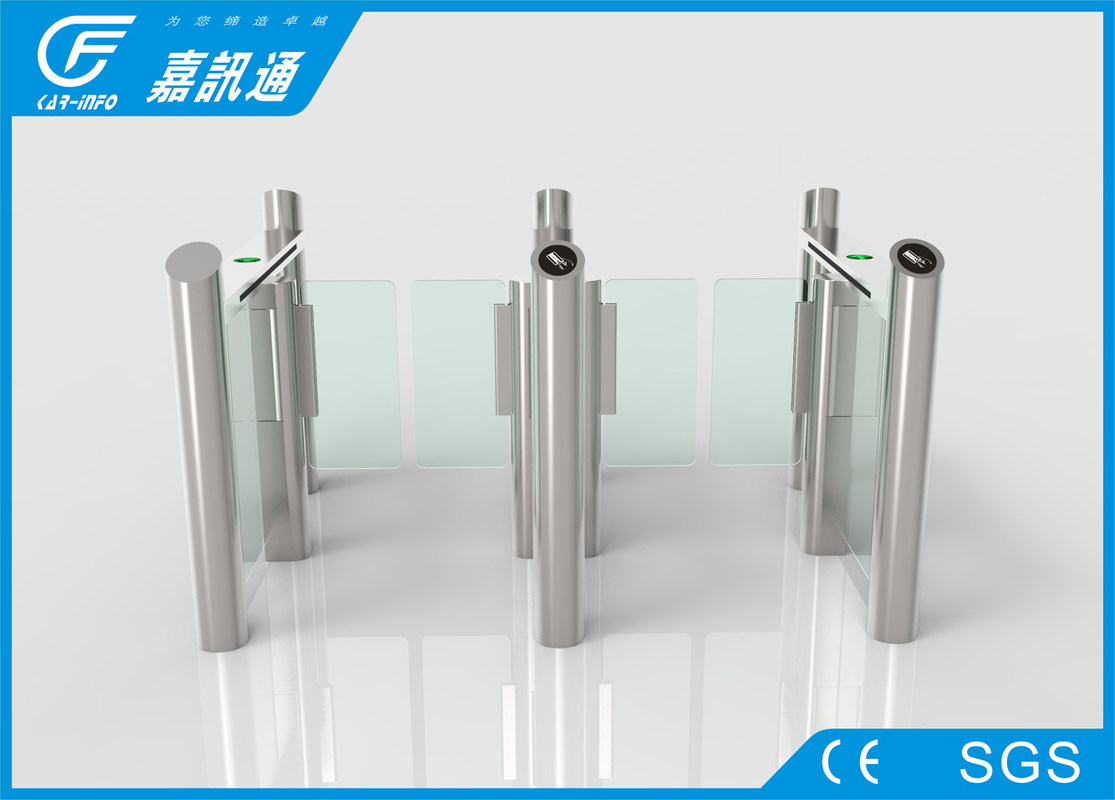

Intelligent IR Sensor Speed Gate Turnstile 40persons / Min Anti - Trap 130W / 24V

Name: Intelligent IR Sensor Speed Gate Turnstile 40persons / Min Anti - Trap 130W / 24V
Brand: Jiaxuntong
SKU: BD- 805PG
Price: 1 USD
Availability: InStock
Rating: 4.8 (144 reviews)

Product Details:

Place of Origin:	Made in China
Brand Name:	Jiaxuntong
Certification:	CE
Model Number:	BD- 805PG

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	wooden package
Payment Terms:	T/T
Supply Ability:	500set/ month

Contact Now

Detailed Product Description

Connection::	TCP/IP Standard Or RS485	Extended Function:	Sound Light ,alarm
Passing Speed:	40persons/min	Driving Motor:	Brcush DC Motor
Direction:	One-way, Bi-direction Adjustable	Materials:	304# Stainless Steel
High Light:	optical barrier turnstiles , turnstile security systems

Intelligent IR Sensor anti-trap high Speed Swing Gate Suitable In Office Builing for control the vistor

Technical Parameters:

1	Power	AC220V±10% 50HZ
2	Operating Temperature	-45°C-60°C
3	Relative Humidity	<95%, No Densation
4	Access Width	550 mm
5	Passing Speed	50 persons/min. (IC Card)
6	Motor	130W/24V
7	Motor Operation Speed	160R/Min.
8	Communication Distance	≤1200M
9	Input Connection	+12V Level Signal or Pulse Wide>100ms Pulse Signal, Current>100ms
10	Communication Connection	RS485 Communication Module Standard
11	Material	Stainless Steel 304, thickness is no less than 1.5mm
12	Running Life	5-8 Million (Continuous Opening and Closing Operation)
13	Protect Level	IP 54
14	Colour	SSB (US32D)-Stainless Steel Brushed/Power Coating (Optional), or other Colour you like
15	Operation Place	Subway Station, Hoverport, Tourism Sports, Exhibition, Swimming Hall, Residence Area, Enterprise Entrance and Exit Attendance, Gateway Guard, Charge Management, Special Access Control

Functions & Features:

The metal house is shaped by high quality 304# stainless steel, with the trait of firmness, antirust, daintiness, safety, easy cleaning and maintenance.
Machinery and electrical integration design
Interface for variety of card reader: such as: IC / ID card readers, bar codes, fingerprints, etc.
Auto reset function. If the passenger does not pass the way in the valid time, the system will lock up again. The valid passing time is 5 seconds.
Arms automatically open when power off, and auto-close when power on
Fault self-checking function, easy for using and maintenance
Through the interior buttons of the main control panel to set the operational status of equipment
Infrared anti-clamping function, by entering obstacles while return ,arm will automatically reset or stop working within the required time with little force
Sound & light alarm function, automatic alarm in case of illegal entering
