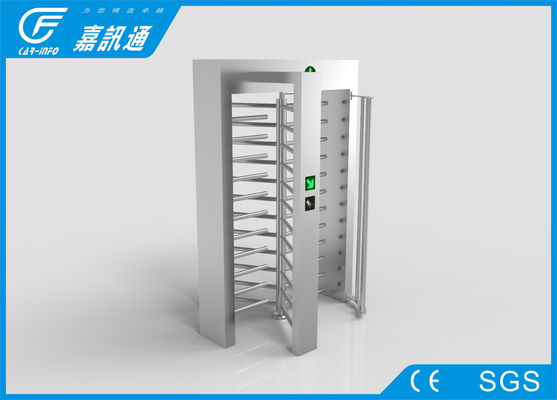

Bi- Direction Adjustable Full Height Turnstile Face Reconigation Control System Brcush DC Motor

Bi- Direction Adjustable Full Height Turnstile Face Reconigation Control System Brcush DC Motor

  • Bi- Direction Adjustable Full Height Turnstile Face Reconigation Control System Brcush DC Motor
Bi- Direction Adjustable Full Height Turnstile Face Reconigation Control System Brcush DC Motor
Product Details:
Place of Origin: Made in China
Brand Name: Jiaxuntong
Certification: CE
Model Number: BDQG-90
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: wooden package
Payment Terms: T/T
Supply Ability: 500set/ month
Contact Now
Detailed Product Description
Connection:: TCP/IP Standard Or RS485 Extended Function: Sound Light ,alarm
Passing Speed: 40persons/min Driving Motor: Brcush DC Motor
Direction: One-way, Bi-direction Adjustable Application: Gym
High Light:

pedestrian turnstile gate

,

one way turnstile

Prison full height turnstile security with finger and face reconigation control system








Full height turnstile Specification



1: material of casing : standard 304ss

2. structure :frame structure with 304SS tube

3. size of casing: 1630*1500*2310mm

4. channel width ; 650mm

5: weight : 230kg/set

6. angle of arm roatation :120 degree

7. single direction or bi-direction

8. power supply: AC220V±10%,50HZ

9. drive motor: DC electromagnet

10: input : relay signal or RS485

11: speed: 40persons/ minute (normally open ) 20-25 persons/min ( normally closed)

12: open/ closed speed: 1-2s

13: working environment: indoor/ outdoor ( with awning)

14. working temperature: -45~+70



How to install the full height turnstile


Before installation, if you need unlock the turnstile,please refer to Figure 3-1.

Step 1: Unlock the frame
Step 2: After confirming the position of the mounting hole, drill down the expansion screw; after the gates are respectively moved to the corresponding installation hole positions, drill down the expansion screws; move the gates to the corresponding one by one alignment anchor bolts and tighten the nut;

Note: 6 pcs M10 or M12expansion screws are required for each gate,the length of the expansion screw should be not less than 120mm.


3.2 Power connection
When the device before shipped, the basic electrical connection has been completed and the user only needs to connect AC power AC220 for the entire system power supply.



Kindly notices




1). When installing the tripod turnstile against the wall,please reserve at least 100mm space in order to open the cover for adjustment and maintenance.
2). The space at the end of the arm shall not be greater than 80mm (see figure 3-1).
3). Setting a warning line for card swiping (see figure 3-3).A warning line is suggested to prompt users to swip cards in a distance,which would greatly reduce the probability of equipment failure coused by improper operations.



Bi- Direction Adjustable Full Height Turnstile Face Reconigation Control System Brcush DC Motor 0
